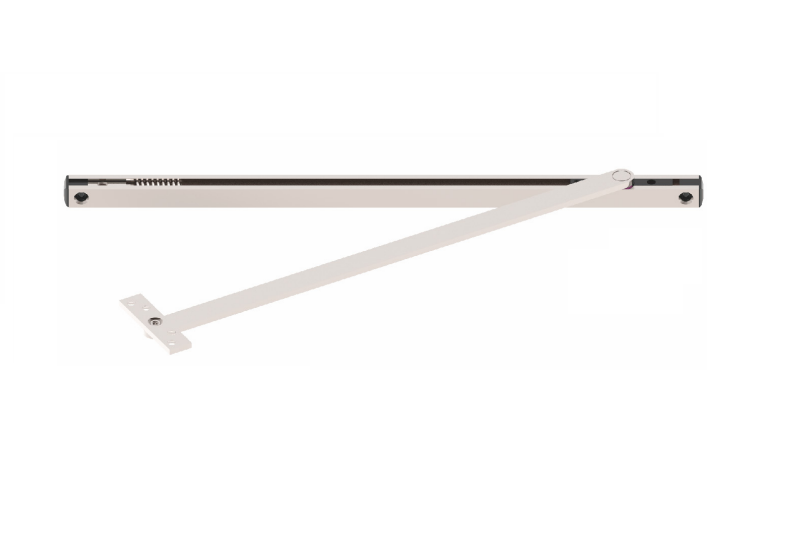

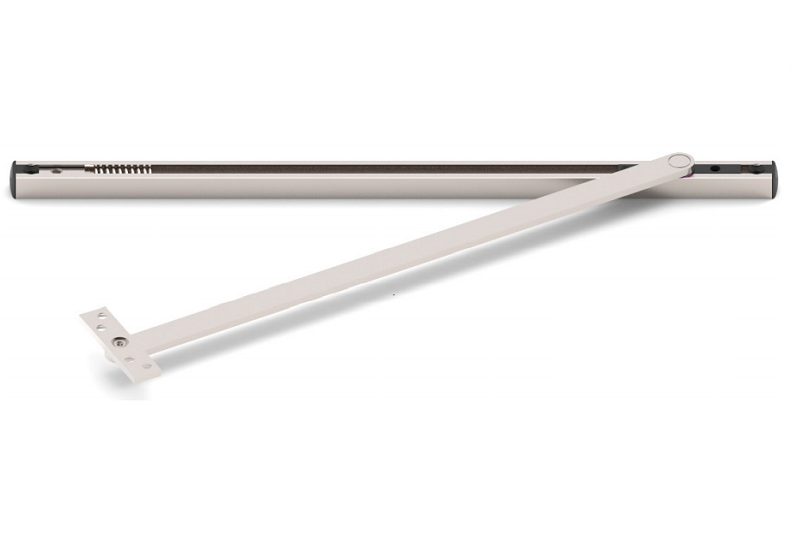

Made from 304 stainless steel, HARDWOOD's overhead stop standard duty series is designed to protect door and hardware from daily abuse found in commercial and institutional applications. Ideally suited as an application for interior/exterior single/double acting doors with stop function.
Features
UL certified
Interior or exterior doors
Single/double acting doors
Stop function
Concealed mount or surface mount options
Non-handed
All holder/stops are installed for particular degree of hold open or stop ranging from 85° to 110°
1-3/4"minimum door thickness
Materials
Stainless Steel
Options

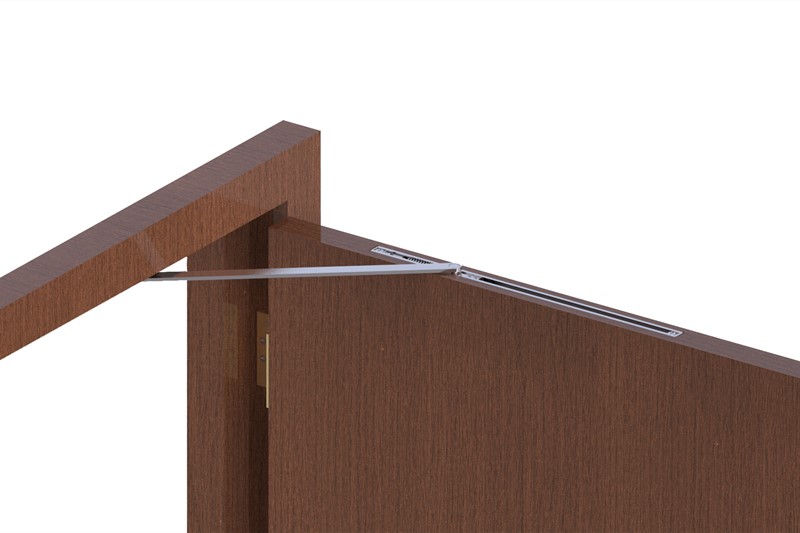

Concealed mount, surface mount
Finishes
Available in standard architectural finishes
Downloads

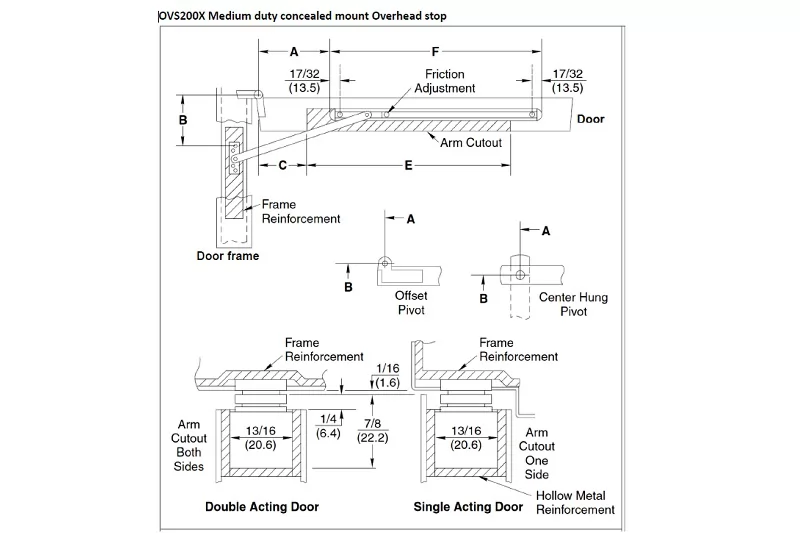

2000 Series Standard-Duty Overhead Stop Concealed Mount Installation Instructions

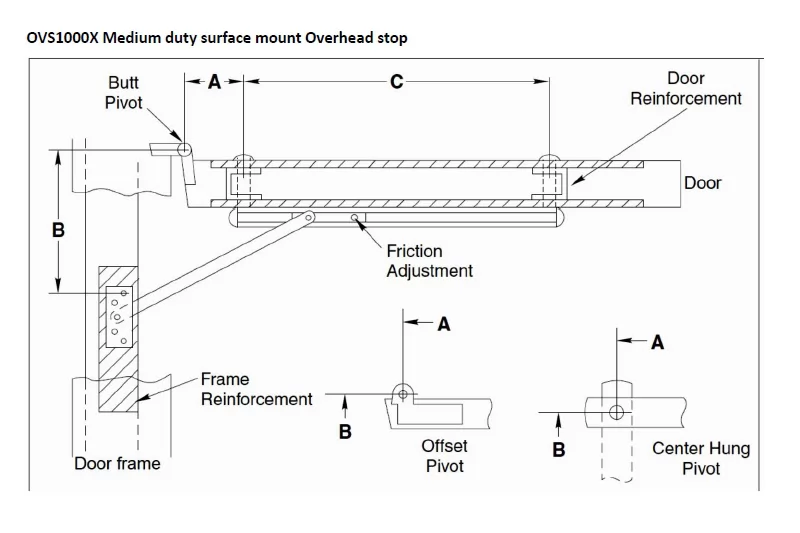

10000 Series Standard-Duty Overhead Stop Surface Mount Installation Instructions
