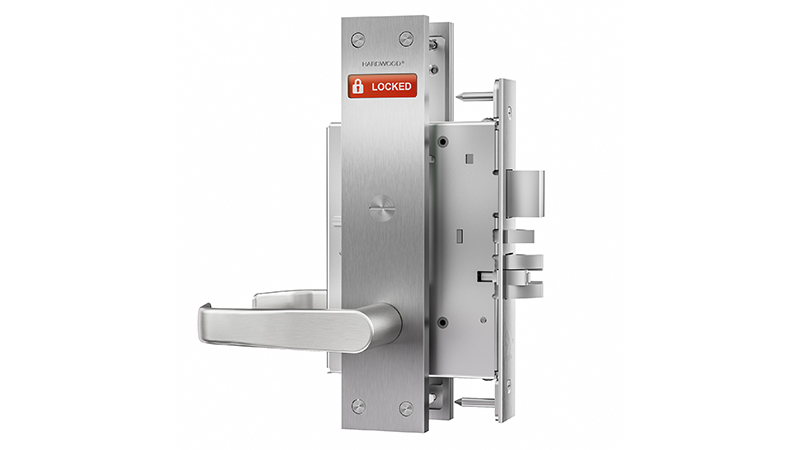

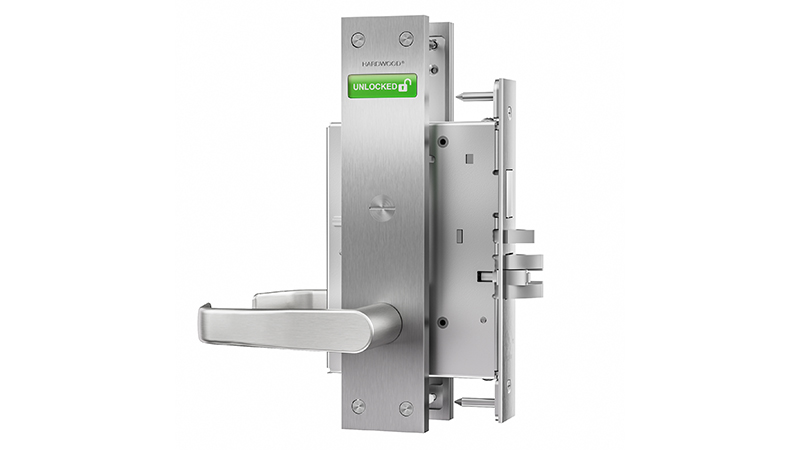

HARDWOOD's indicated mortise lock series is compliant with the ANSI/BHMA 156.13 Grade 1 standard. The indicator function provides a bold, visual indicator on both the inside and outside of the door to communicate the door status while providing ultimate privacy assurance.

 Features

  UL certified

  ANSI/BHMA G1 certified

  Anti-bacterial material SS316

  Strong and reliable

  Privacy function with indicator

  Backset Depth (Standard): 2 3/8"

  Door Thickness (Standard): 1 3/4"

  Latchbolt Throw: 3/4"

  Deadbolt Throw: 1"

  Maximum Backset: 2 3/4"

  Minimum Backset: 2 3/8"

  Number of Keys: 0

  Strike Type: T-strike

 Materials

  Cover, Lever, Knob: Stainless Steel 316

 Finishes

  Available in standard architectural finishes
