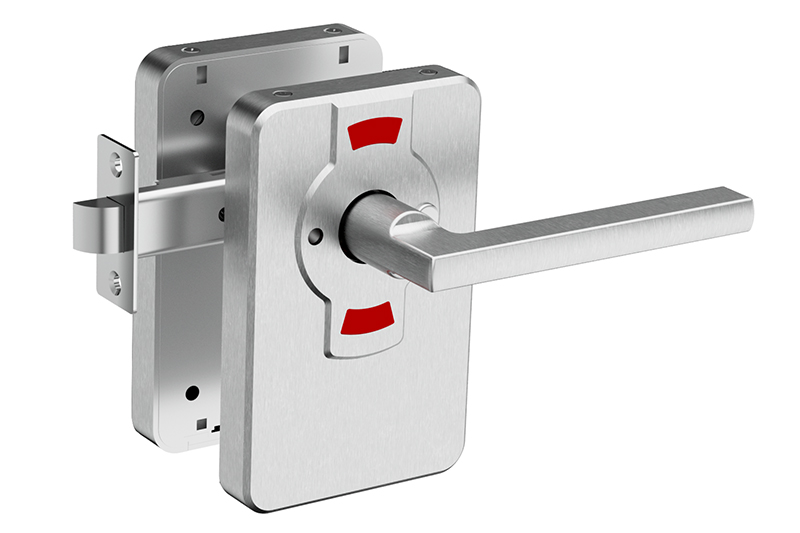

HARDWOOD's indicated bathroom latch is compliant with the ANSI/BHMA 156.2 Grade 2 standard. The indicator function provides visual indicator lights on both the inside and outside of the door to communicate the occupied or unoccupied status while providing ultimate privacy assurance. The fan-shaped window displays aesthetically.

 Features

  ANSI/BHMA G2 certified

  UL 10C standard

  Anti-bacterial material SS316

  Privacy function with indicator lights

  Backset Depth (Standard): 2 3/8"

  Door Thickness (Standard): 1 3/4"

  Latchbolt Throw: 1/2"

  Maximum Backset: 2 3/4"

  Minimum Backset: 2 3/8"

  Number of Keys: 0

  Strike Type: T-strike

 Materials

  Cover, Lever, Knob: Stainless Steel 316

 Finishes

  Available in standard architectural finishes

 Downloads
