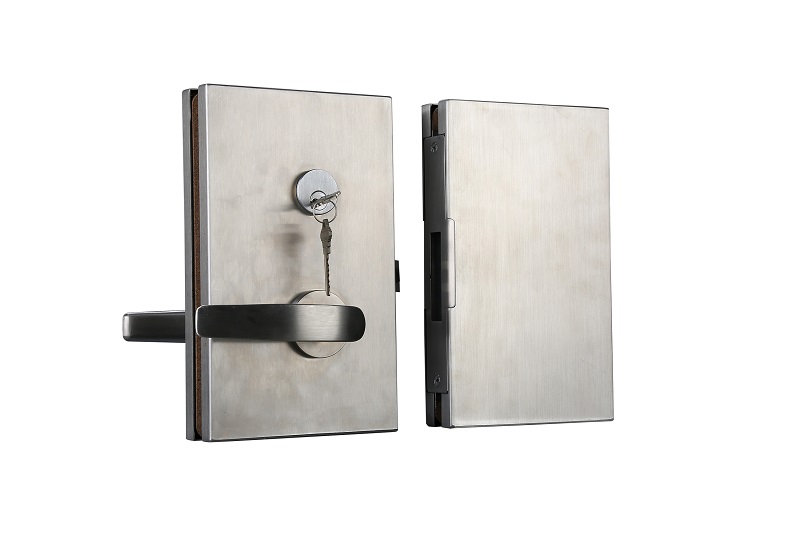

Glass Door Center Lock Housing and Keeper
Glass Door Center Lock Housing and Keeper
Glass Door Center Lock Housing and Keeper
Glass Door Center Lock Housing and Keeper
Glass Door Center Lock Housing and Keeper
Product Description
Technical Data

HARDWOOD's center mortise lock series is made of stainless steel with non-asbestos rubber gasket, which is compliant with the environment protection requirements and can extend the service life of the product. The housing matches with different functions mortise lock. Reliable applications for commercial buildings. It's ideal for glass door thickness of 3/8" to 1/2".

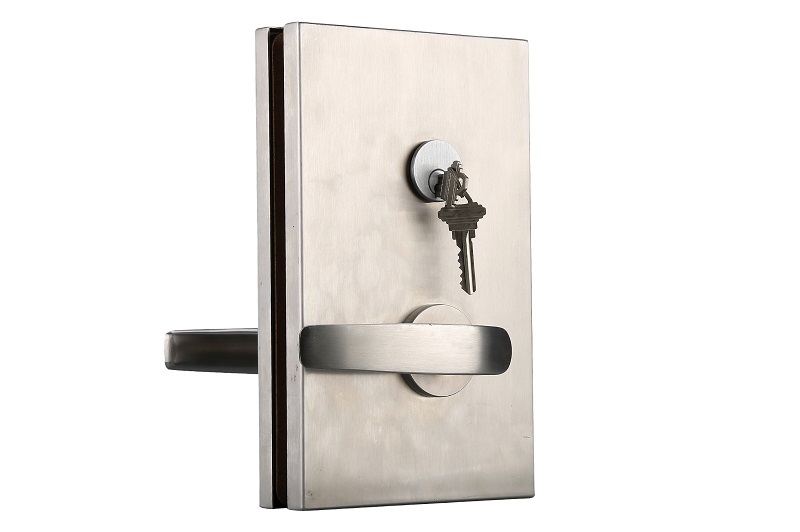

 Features of Housing

  Different mortise lock functions available

  Die casting bracket

  Cover: stainless steel

  Non-asbestos rubber gasket

  6" W x 10" H with cover plates

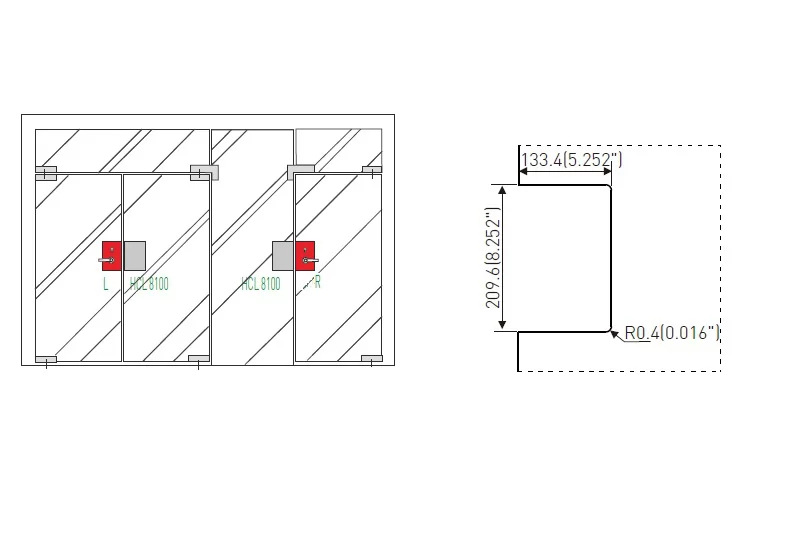

  Glass cut-out required

  Available for 3/8" and 1/2" thick glass

  Handed

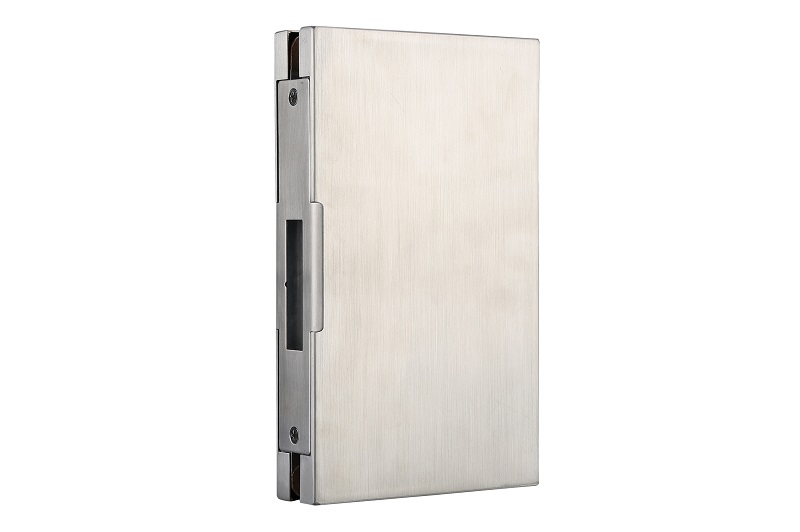

 Features of Keeper

  Opposite center lock patch on single and double door applications

  Die casting bracket

  Cover: stainless steel

  Non-asbestos rubber gasket

  6" W x 10" H with cover plates

  Glass cut-out required

  Available for 3/8" and 1/2" thick glass

  Common strike, or customized




 Materials

  Stainless steel and aluminum cover available



 Mortise Lock Function Options (ANSI/BHMA A156.13)

  F01 Passage

  F04 Office

  F05 Classroom

  F07 Storeroom

  F20 Entrance



 Finishes

  Available in standard architectural finishes















 Downloads

   Glass Patch Fittings Catalog
