ANSI/BHMA G1 Mortise Lock GL Series
ANSI/BHMA G1 Mortise Lock GL Series
ANSI/BHMA G1 Mortise Lock GL Series
ANSI/BHMA G1 Mortise Lock GL Series
Product Description
Technical Data

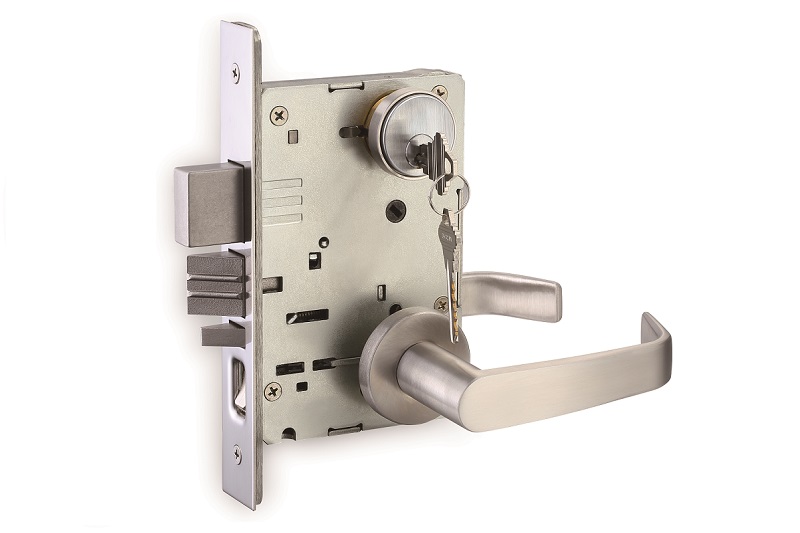

HARDWOOD's mortise lock GL series is certified to ANSI/BHMA Grade 1 standards for all functions. It offers maximum security, performance, and ensures durability and protection, making it ideal for schools, apartment housing and commercial buildings. Additional flexibility with the option of most standard architectural grade finishes and 10 functions.



 Features

  ANSI/BHMA G1 certified

  Compliant with ANSI/BHMA A.156.13 standard

  Multiple functions, finishes, lever styles

   Fit for wooden door and metal door

   Provide long life and withstands abuse with a durable design of heavy duty components

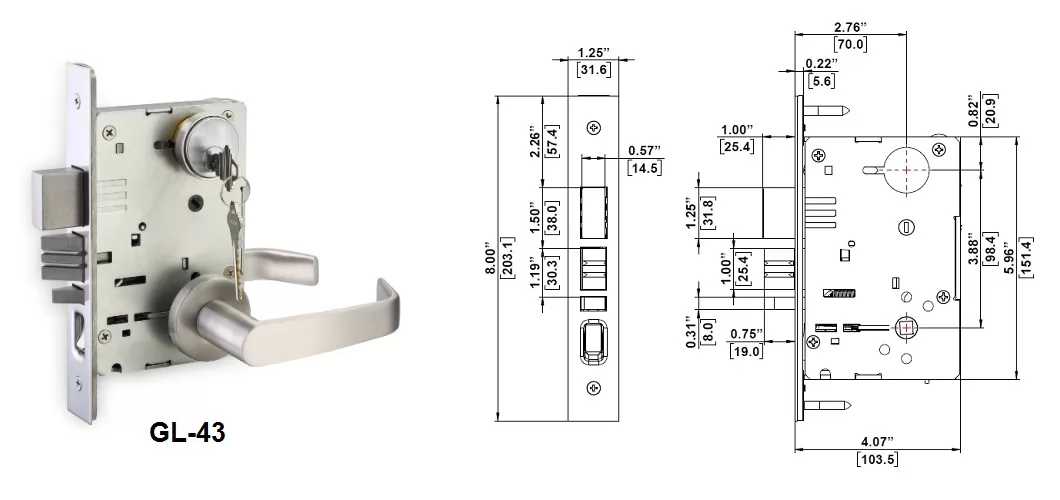

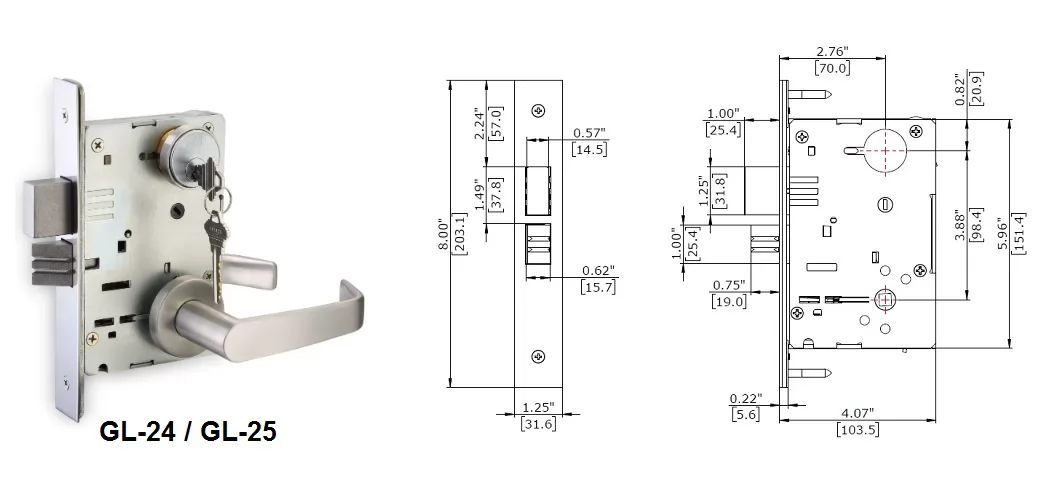

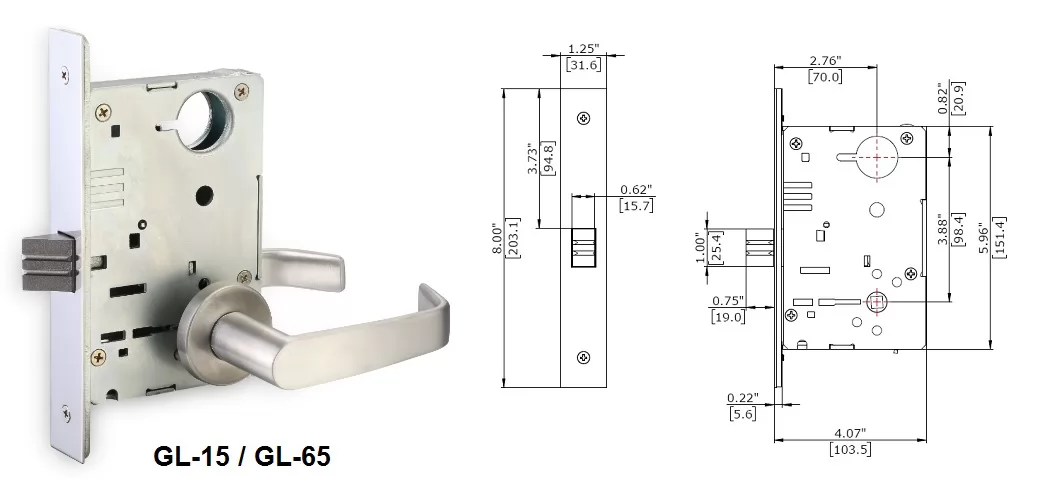

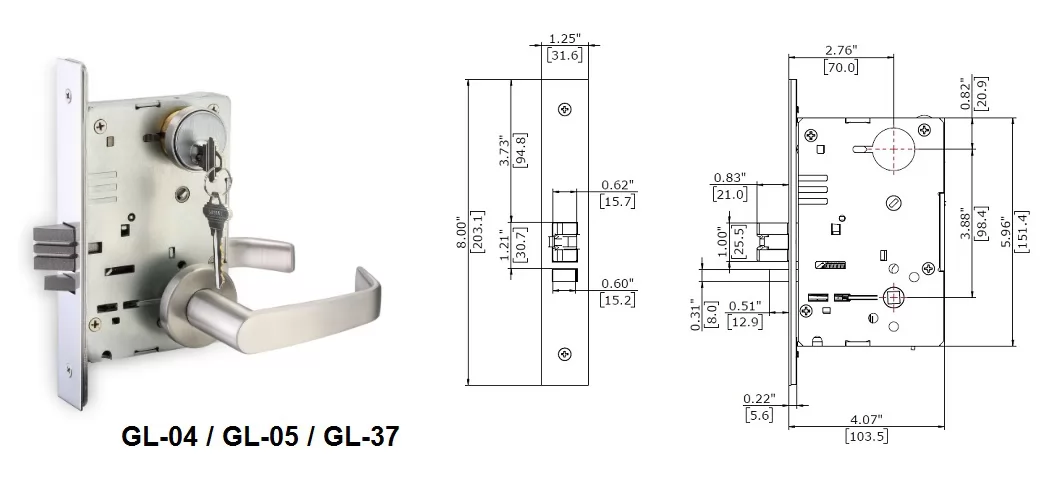

  Backset Depth: 2 3/4"

  Door Thickness: 1 3/4" - 2 1/6"

  Latchbolt Throw: 3/4"

  Deadbolt Throw: 1"

  Number of Keys: 2

  Strike Type: T-strike with curved lip



 Materials

  Stainless Steel

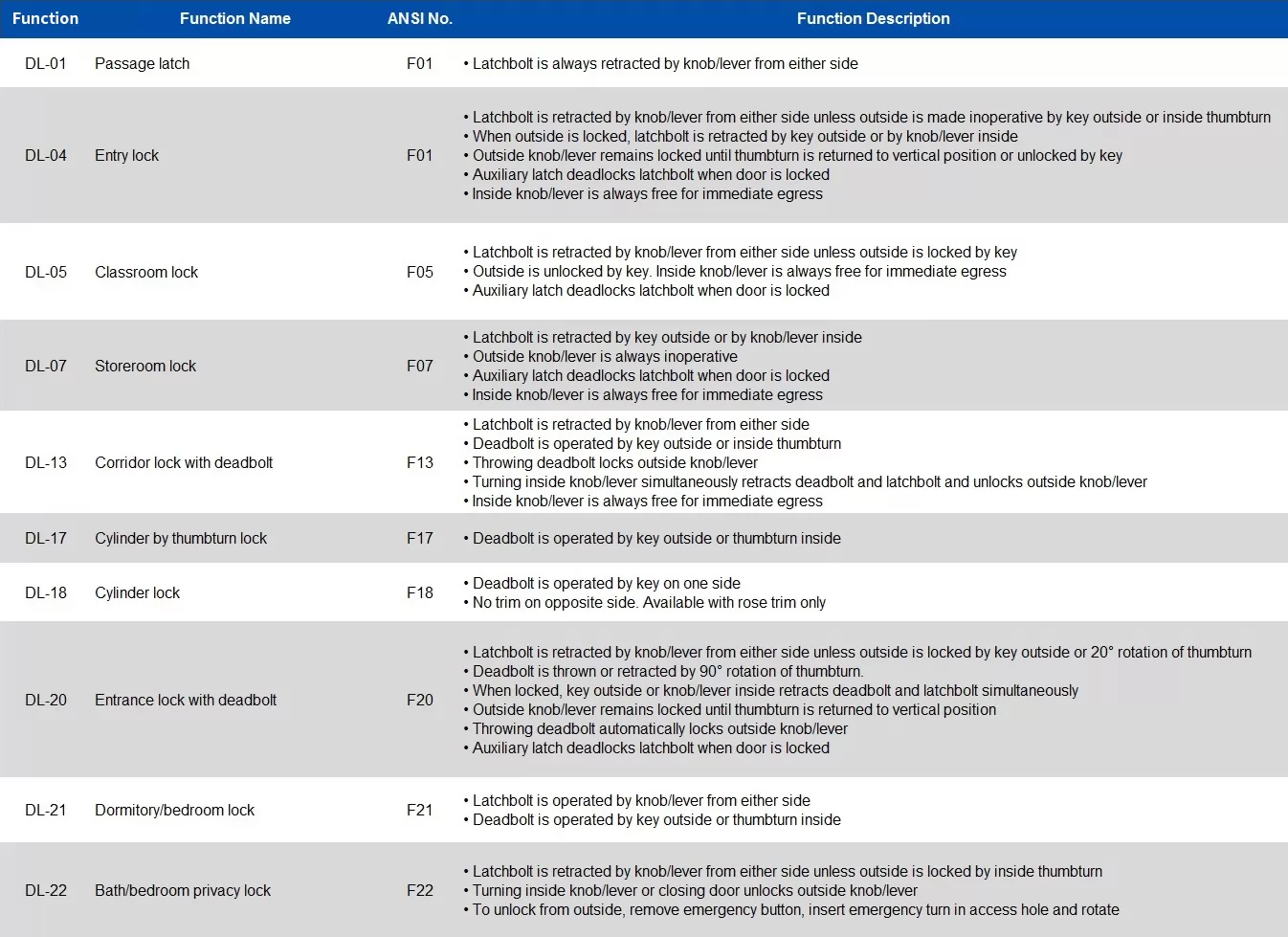

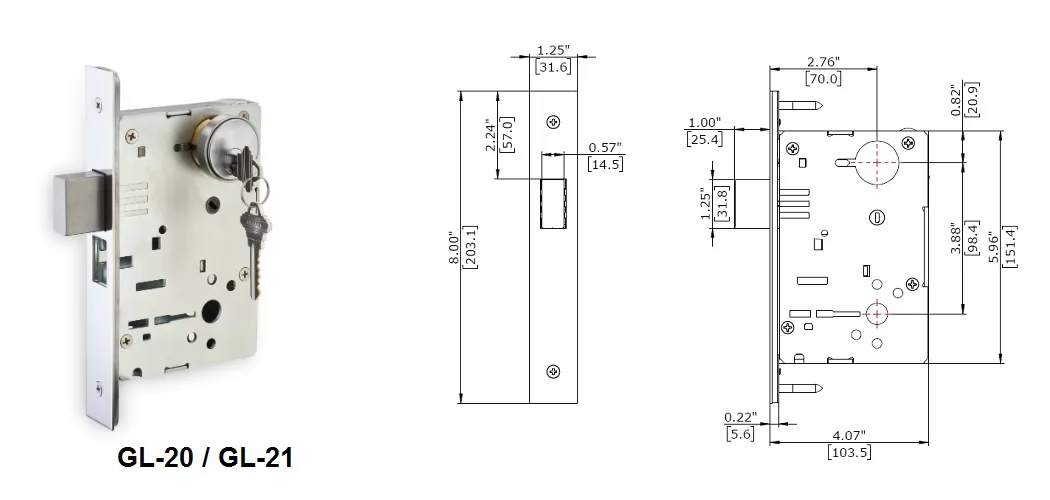

 Functions

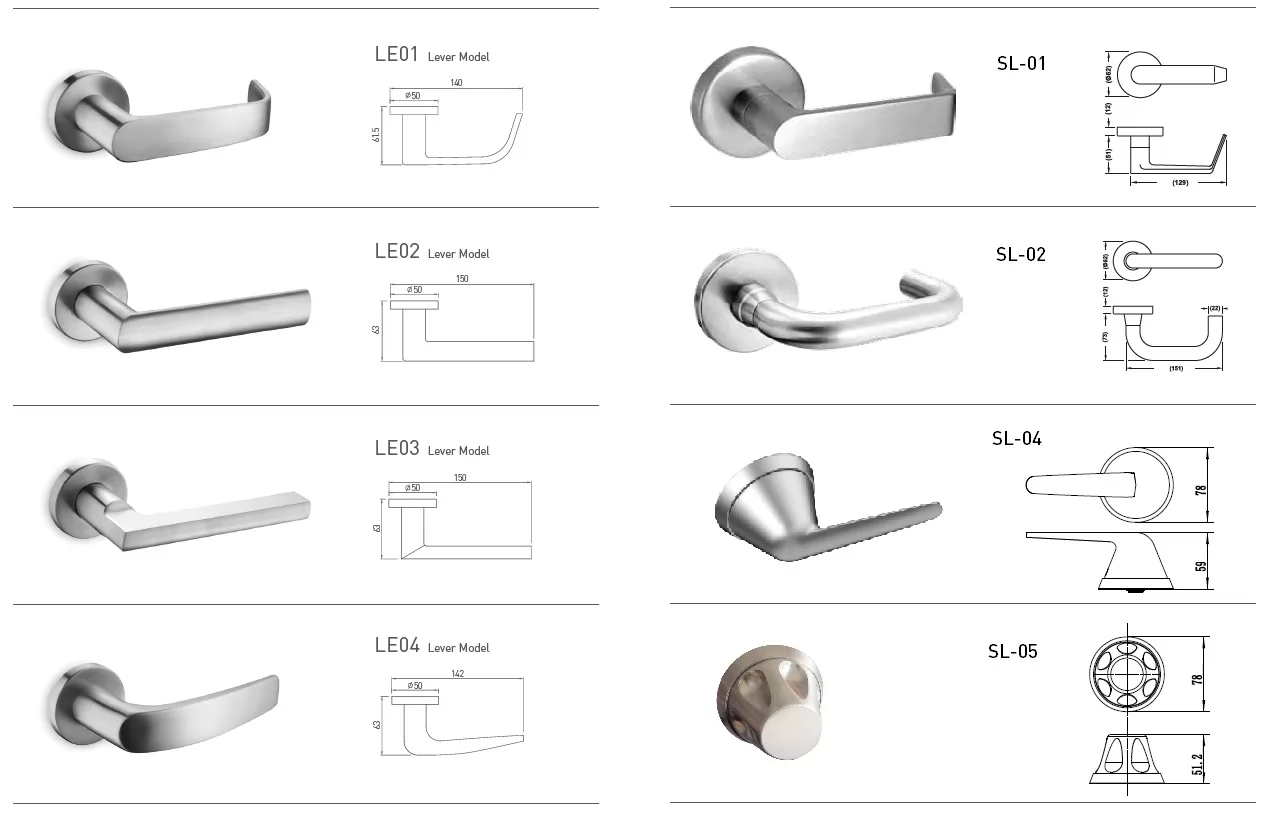

 Lever Handle Options







 Finishes

  Available in standard architectural finishes















 Downloads

   Mortise Lock Catalog
