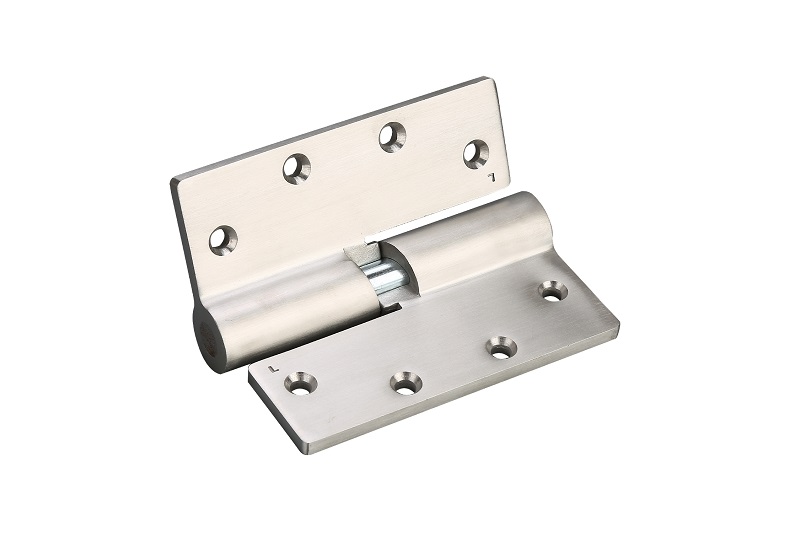

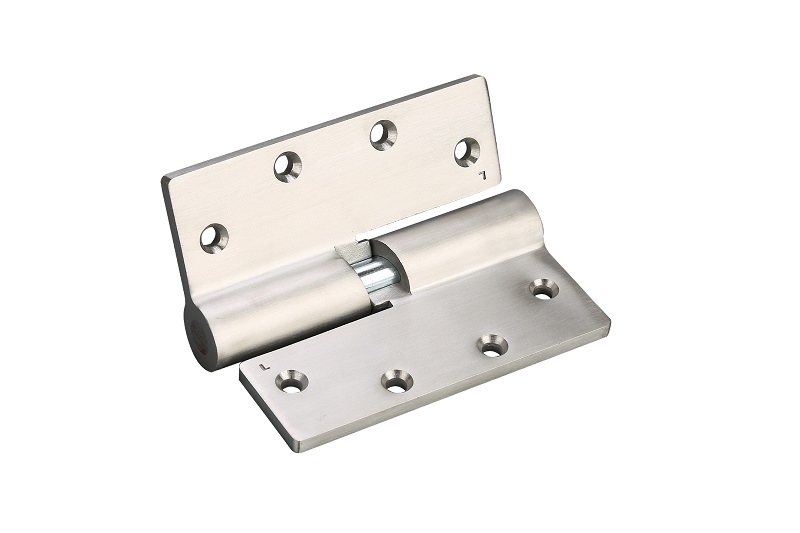

Cam Lift Hinge 5"x4.5"x T6.3mm L/R Handed
Product Description
Technical Data
HARDWOOD's cam lift hinge series is for use with sound-insulating doors utilizing acoustical seals. Can be used on hollow metal or wood frames&doors. The cam action improves the sealing characteristics along the door perimeter, lifting and lowering the door with the swing. Available for right or left-hand swinging doors.
Features

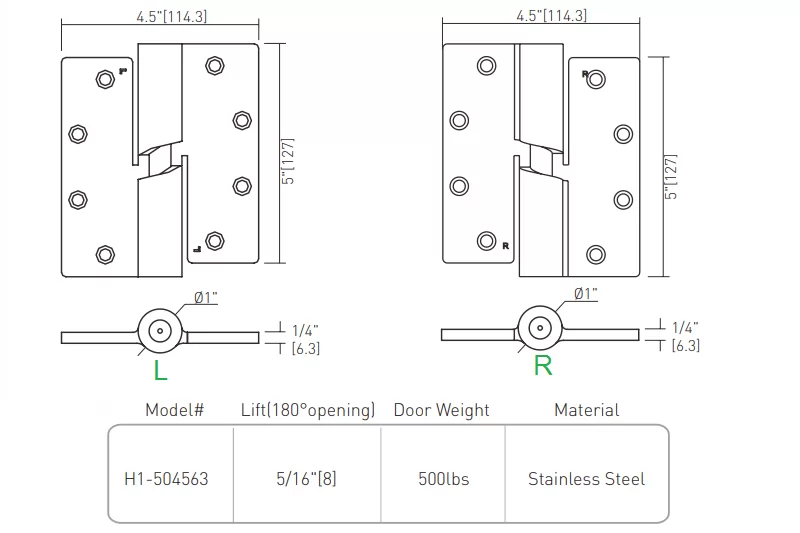

Dimension: 5"x4.5"x T6.3mm

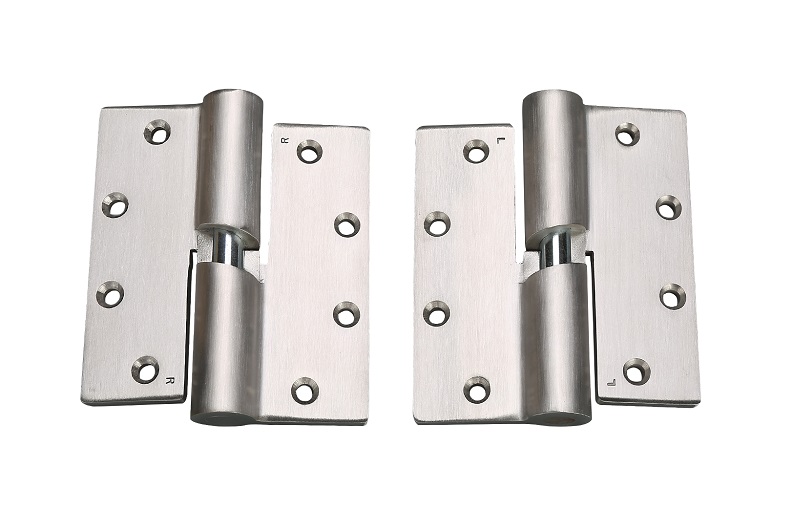

Handing: specify right or left handed
Provide max. 5/16” of lift at 180°
Can hold up to 500 Lbs
Materials
Stainless Steel
Finishes
Available in standard architectural finishes
