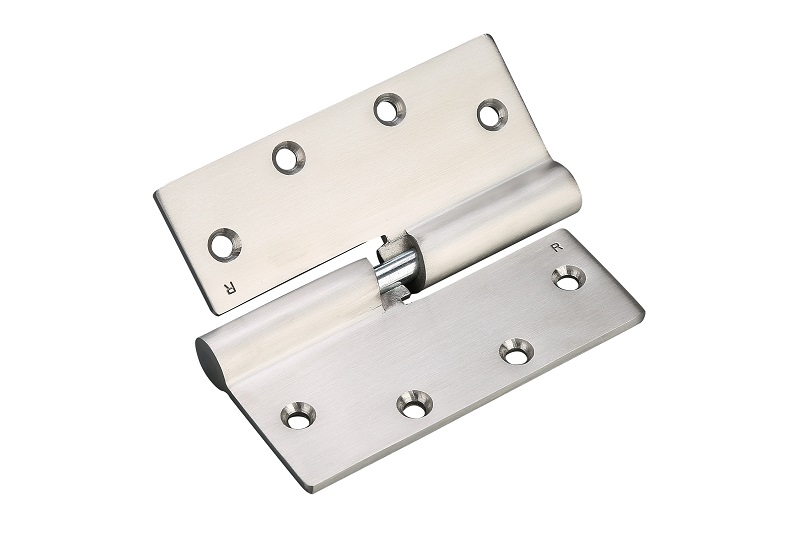

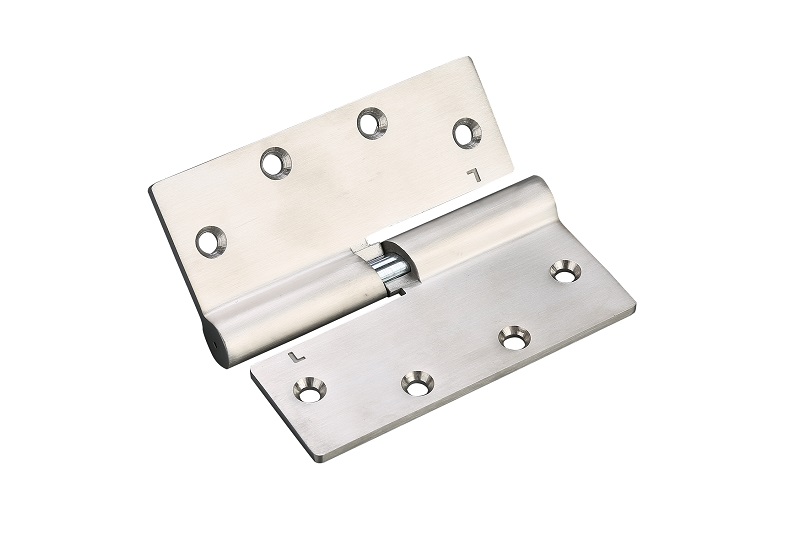

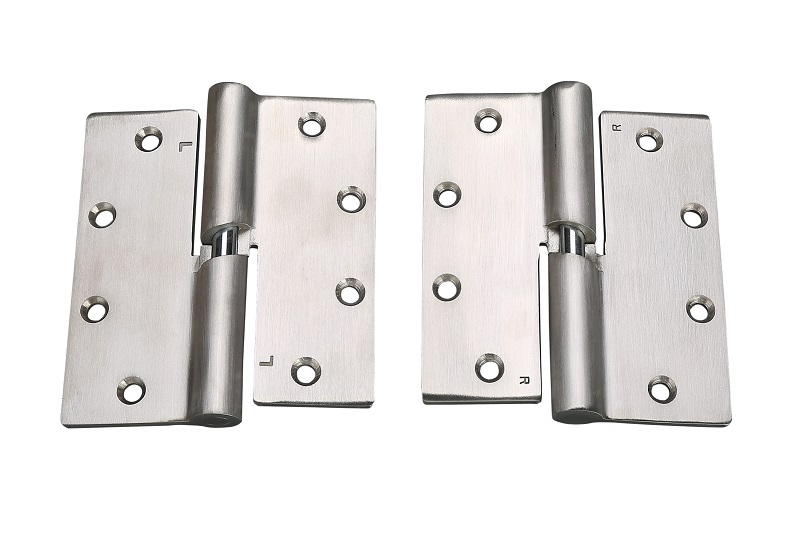

Cam Lift Hinge 5"x4.5"x T4.6mm L/R Handed
Cam Lift Hinge 5
Cam Lift Hinge 5
Cam Lift Hinge 5
Cam Lift Hinge 5
Product Description
Technical Data

HARDWOOD's cam lift hinge series is for use with sound-insulating doors utilizing acoustical seals. Can be used on hollow metal or wood frames&doors. The cam action improves the sealing characteristics along the door perimeter, lifting and lowering the door with the swing. Available for right or left-hand swinging doors.



 Features

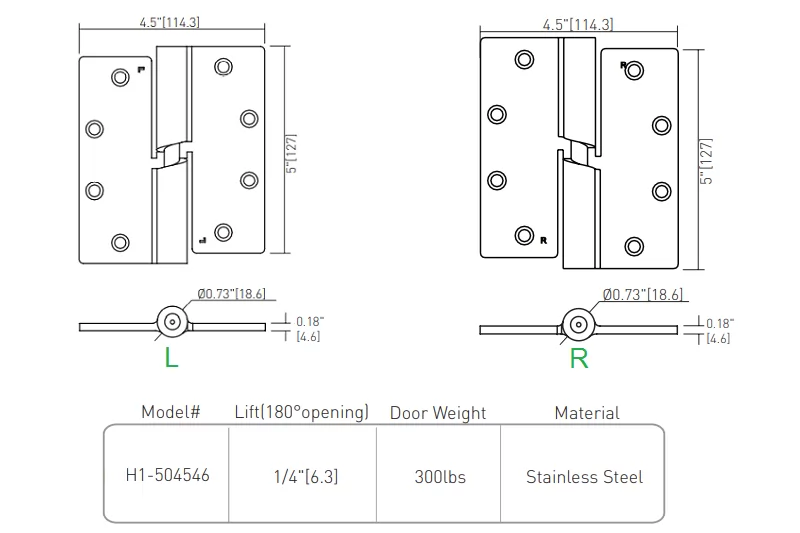

   Dimension: 5"x4.5"x T4.6mm

   Handing: specify right or left handed

    Provide max. 1/4” of lift at 180°

    Can hold up to 300 Lbs




 Materials

   Stainless Steel





 Finishes

   Available in standard architectural finishes















 Downloads

    Hinges Catalog
